SPEED PANEL for AXIS Devices

Manufacturer and Developer

We provide direct support and tailor-made customization of the features

A complete system for displaying the current vehicle speed and license plate number with support for AXIS devices.

The device is designed for fixed outdoor installations with high visibility and resistance to weather conditions.

- Compatible with AXIS Q16x6-DLE Radar-Video Fusion Camera

- Compatible with AXIS D2210-VE

- Compatible with AXIS cameras that support AXIS Licence Plate Verifier (check compatibility here)

- Easy instalation

- Can be mounted on a pole with diameter of up to 60 mm

- Readability up to 100 meters (speed)

- Available in two versions IP and RS

- Clear and User-friendly web interface

Increase safety in your city or industrial area

BASIC CLASSIFICATION

SPEED PANEL WITH SERIAL COMMUNICATION (RS)

The system is based on direct communication via the RS485 bus and is therefore completely separate from the IT infrastructure. As a result, it has no impact on the existing level of cybersecurity of the camera system.

SPEED PANEL WITH NETWORK COMMUNICATION (IP)

The system is based on communication via LAN/Ethernet (TCP/IP) and is enhanced with a tool that gives you full control over the content displayed on the panel.

Download types of SPEED PANEL

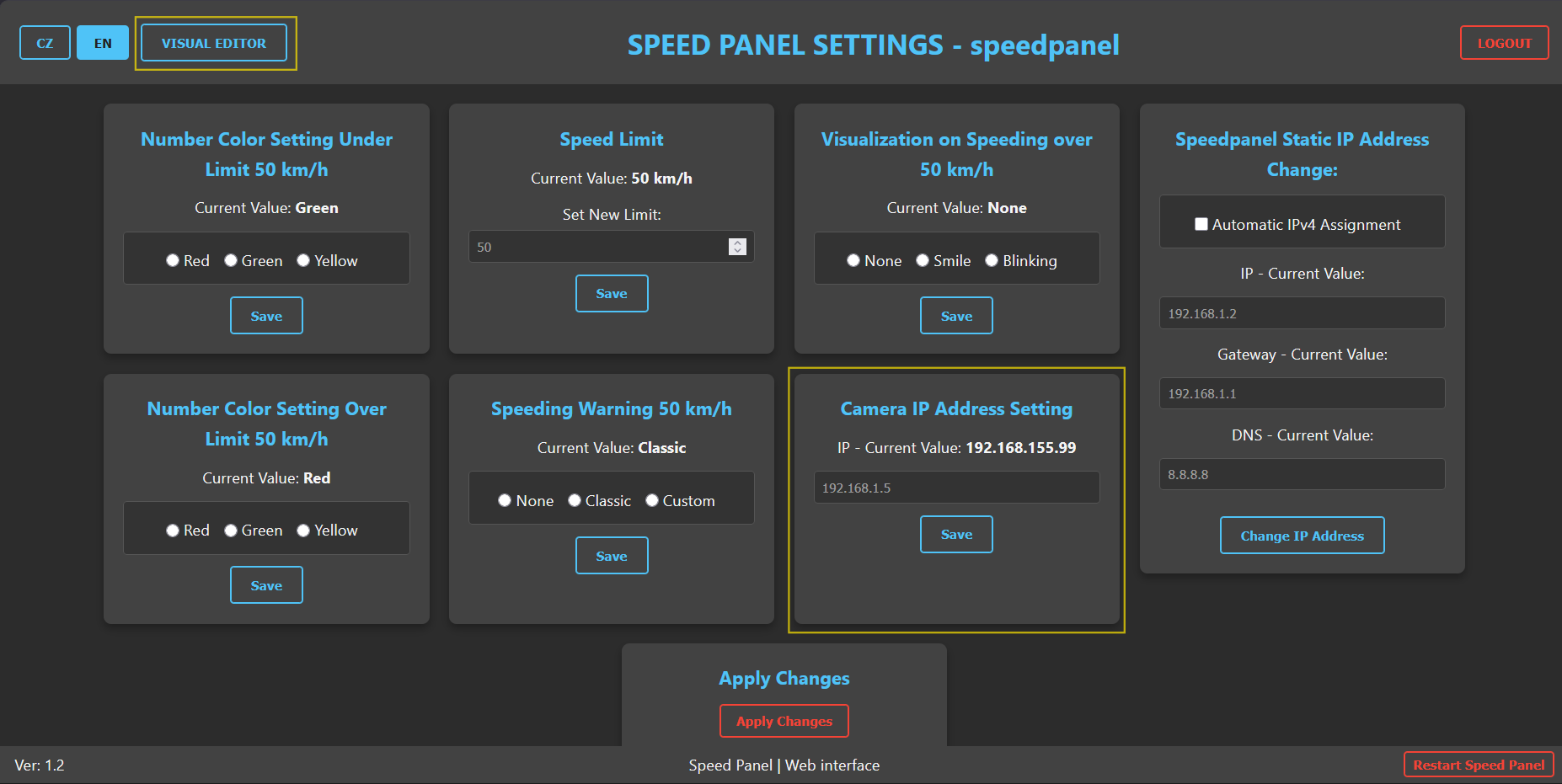

WEB INTERFACE FOR BASIC SETTING OF SPEED PANEL

|*available only with the IP version of the SPEED PANEL

In both versions (RS, IP), you can customize the SPEED PANEL to your needs. You can adjust the color of the displayed digits, the speed limit in the area, as well as the thank-you/warning text or visualization when the speed limit is exceeded.

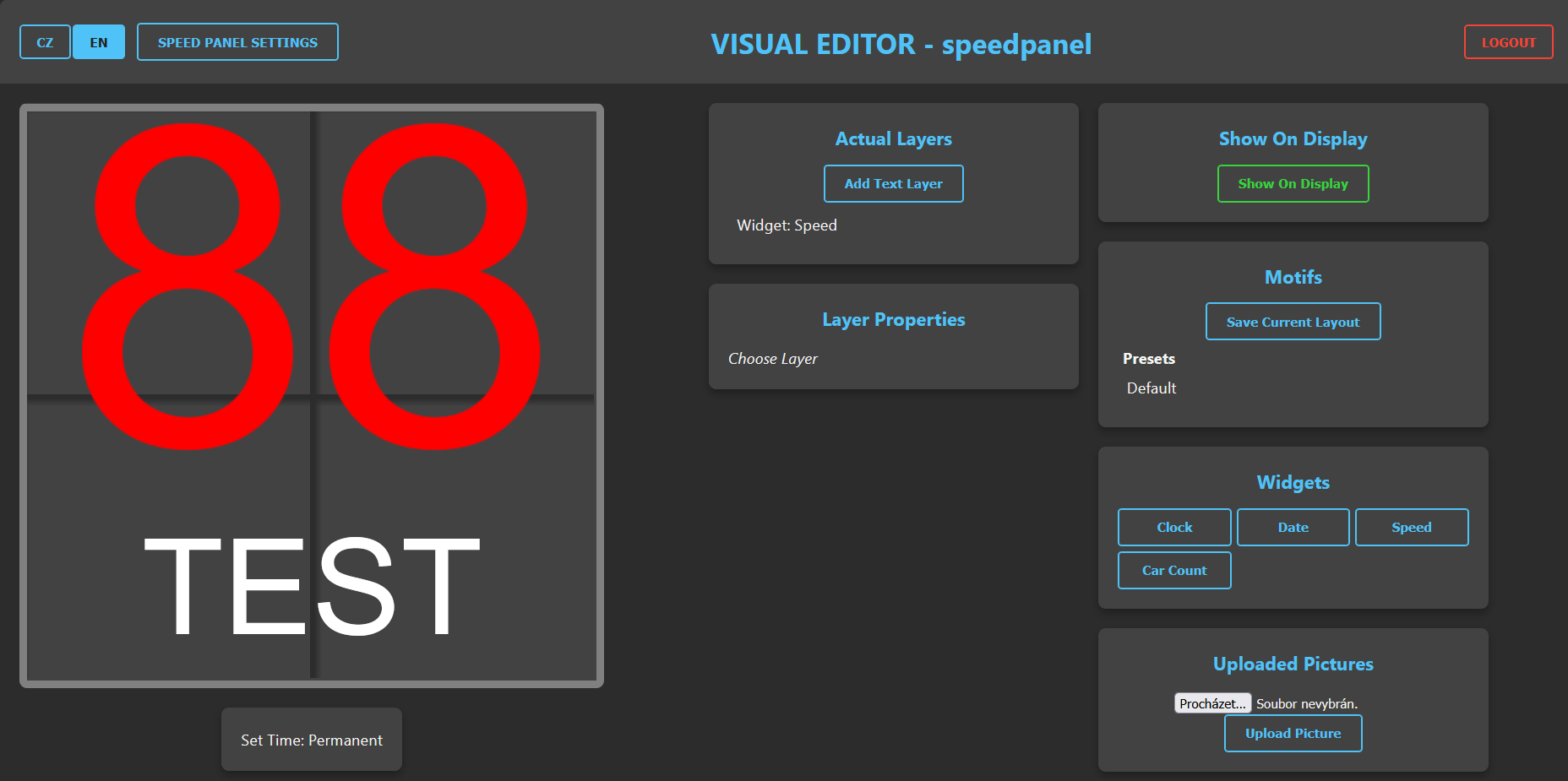

VISUAL EDITOR FOR SPEED PANEL

Easily insert text, images, date or time directly into the graphical interface and set whether your layout should be displayed at a specific time or within a given time range.

The default setting is always for speed measurement. You can also NEWly add a list of the number of cars in the zone.

PARAMETERS

▶️ LED display
Dimensions: 503 × 503 × 73 mm
Weight: approx. 5.6 kg without brackets
Data interface: HUB75
Connection: IDC16/F-IO cable
Readability: up to 100 meters (speed)

▶️ Switchboard
Type: ABS plastic box
Standards: EN 62208, 61439-3, 61439-1, 60670-24
Dimensions: 250 × 350 × 150 mm
Weight: 3 kg without brackets
Protection degree: IP65
IK resistance class: IK08
UV resistance: Yes (UV stable)
Halogen free: Yes
Locking: 1-point lock

▶️ Power supply
Power supply to the switchboard: 230 V AC
Fusing: C6A/1 circuit breaker
Power supply for display: 5 V DC

▶️ Compatibility
software: AXIS License Plate Verifier
software: FF GROUP CAMMRA AI

LOCATIONS WHERE THE SPEED PANEL IS ALREADY INSTALLED

Location

Statutory City of Kladno, CZ

Statutory City of Brno, CZ

Budaörs, Hungary, H

Barum, town of Otrokovice, CZ

Letiště Václava Havla, Capital City of Prague, CZ

Magistrát, Statutory City of Ostrava, CZ

st. Osvobození, town of Stochov, CZ

Type

SPEED PANEL version IP

2x SPEED PANEL version RS

SPEED PANEL version RS
